Movesense

CardioRTHM

CardioRTHM

Package includes: Movesense MD sensor and Movesense Chest strap. Movesense ECG Recorder App is available in App Store and Google Play.

€349,90 EUR
€349,90 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Pre-Order Discount - 100.00 € will be reduced at check out.

Estimated delivery time: Shipping starts April 1, 2025

Chest strap sizes (Chest circumference): Small = 56–82 cm / 22-32 in, Medium = 70-110 cm / 28-43 in, Large = 96–160 cm / 38-63 in.

Chest Strap Size
View full details

Product Description

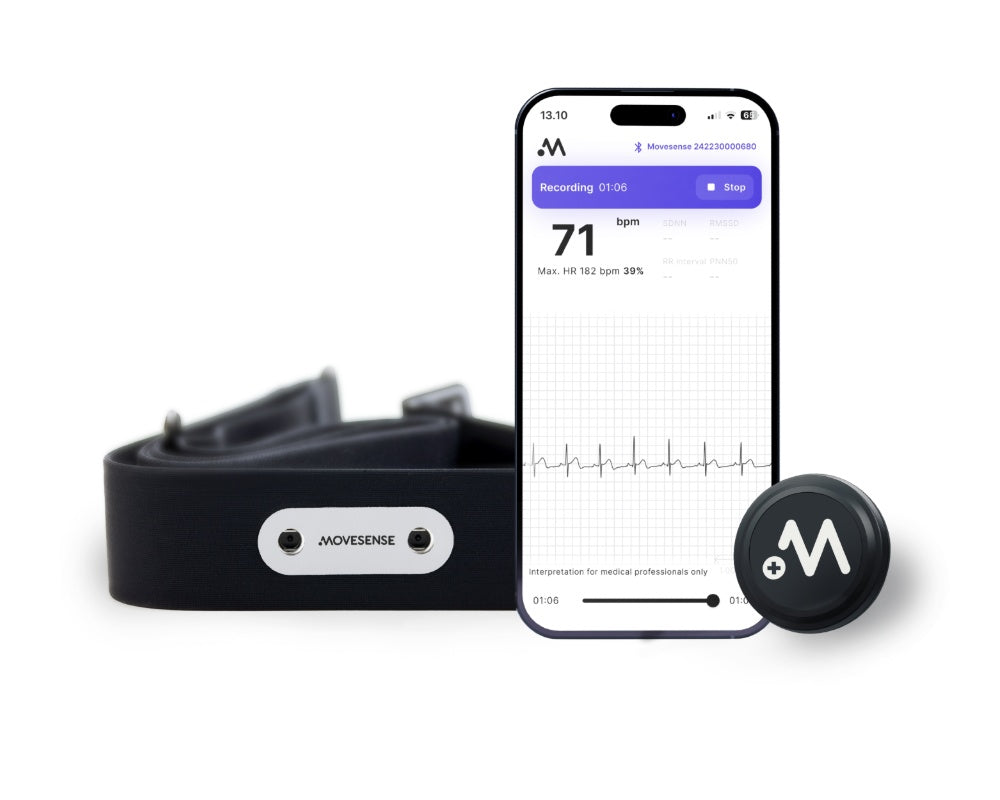

CardioRTHM is a wearable medical solution for monitoring single channel ECG and Heart Rate. CardioRTHM is designed for consumers and healthcare professionals.

CardioRTHM has two main functionalities:

  1. Receiving, storing and displaying ECG data.
  2. Sharing of the recorded ECG data to medical professionals or medically certified analysis applications for further processing and diagnosis.

Please note! ECG data shall only be interpreted and diagnosed by healthcare professionals with adequate cardiological qualifications or by software intended for this purpose and certified as a medical device in accordance with applicable regulations.

CardioRTHM includes the Movesense MD sensor and the associated Movesense ECG Recorder mobile application, certified as a Class IIa medical device (EU MDR), and the Movesense Chest Strap MD, a Class I medical device (EU MDR).

Technical specifications

Technical details:

  • Supported mobile operating systems: Android 9 and later, iOS 12 and later*
  • Connection via Bluetooth Low Energy
  • A single-lead ECG, Heart Rate (HR) & R-R Intervals
  • Data sharing in csv, pdf and edf+ file formats
  • Sharing files with your phone’s available sharing methods
  • Individual recordings up to 24h, longer recording sessions automatically split into 24h files. Estimated battery life 7 days.
  • CardioRTHM is a class IIa medical device, EU MDR (2017/745)

* Compatibility depends on the Bluetooth implementation of individual phone models.

Performance:

  • ECG sampling rate in the application fixed 200Hz, single-channel
  • Movesense MD sensor ECG measurement bandwidth: 0.5Hz-40Hz as defined in IEC 60601-2-47
  • Movesense MD sensor ECG measurement dynamic range 60mVp-p, max offset: 500mV, resolution: 15 bits
  • Maximum expected battery life of the Movesense MD sensor in ECG monitoring is 7 days.
  • Wireless transmission range between the Movesense MD sensor and the host phone up to 10m/33ft.
  • Heart rate: 20BPM-240BPM, resolution: 1BPM, accuracy: ±1BPM
  • R-R intervals: 250ms-3000ms, resolution: 1ms, timing accuracy: ±1ms
  • Modified Pan-Tompkins algorithm used for R-peak detection

Product details:

  • Device name and type identifier: Movesense MD, OP174
  • Chest strap sizes (chest circumference):
    S = 56–82 cm / 22-32 in, M = 70-110 cm / 28-43 in, L = 96–160 cm / 38-63 in.
  • Movesense MD Sensor UDI-DI: 6429810883001
  • Movesense ECG Recorder Application UDI-DI: 6429810883087
  • Movesense Chest Strap MD UDI-DI: 6429810883025
